Since 1992 A.N. Survey Instrument Repair has been offering quality Sales and Service of surveying instruments, surveying equipment and supplies.
109 Crawford Rose Drive Aurora, ON L4G 4S1 PH: 905-841-0119 EMAIL
If you are thinking about purchasing new equipment you might consider doing it before prices go up substantially - why ? Much of the equipment is made in China but comes to Canada via USA from our suppliers. These suppliers are subject to new extreme tariffs imposed by the American government and they will pass on their increased costs to consumers. We are checking current pricing now on a per order basis .
If you are looking for some great pricing on brand new laser levels, levels, theodolites, and total stations for 2025 you have come to the right place!
Whether you are working in construction, survey engineering, manufacturing, road building, paving contractor, landscape construction, swimming pool contractor, public works, or an individual in need of equipment for purchase or repair, we can help you with quick efficient service and competitive pricing on new products.
SALES and SERVICE automatic level, digital level,
laser level, theodolite (transit), total station, Robotic Total Station,, Data Collector, machine control receiver, Leica, Geomax and GPS survey equipment, metal locator, Leica Disto laser distance meter, tribrach, prisms, robotic prism, prism pole, measuring rod, measuring tape, measuring wheel, Kinverted marking paint, survey supplies and accessories.
We are suppliers for Site Pro, Geomax, Topcon Laser Levels, Leica Laser levels, Total Stations, Excavating machine control,, Magnawand metal locator , Zip Level, Leica Disto, and other surveying instruments.
- Other models available upon request.
- Rental of equipment is also available upon request
-------------------------------------------------------------------------------------------
News regarding Topcon and Sokkia Products
**We Sell Topcon Lasers!
See our Topcon Laser Level Page!
We are no longer a Dealer for OTHER Topcon/Sokkia products** -!
Please contact us for equivalent supplies and equipment products that we recommend by other manufacturers.
Topcon RL-H5A Laser Levels

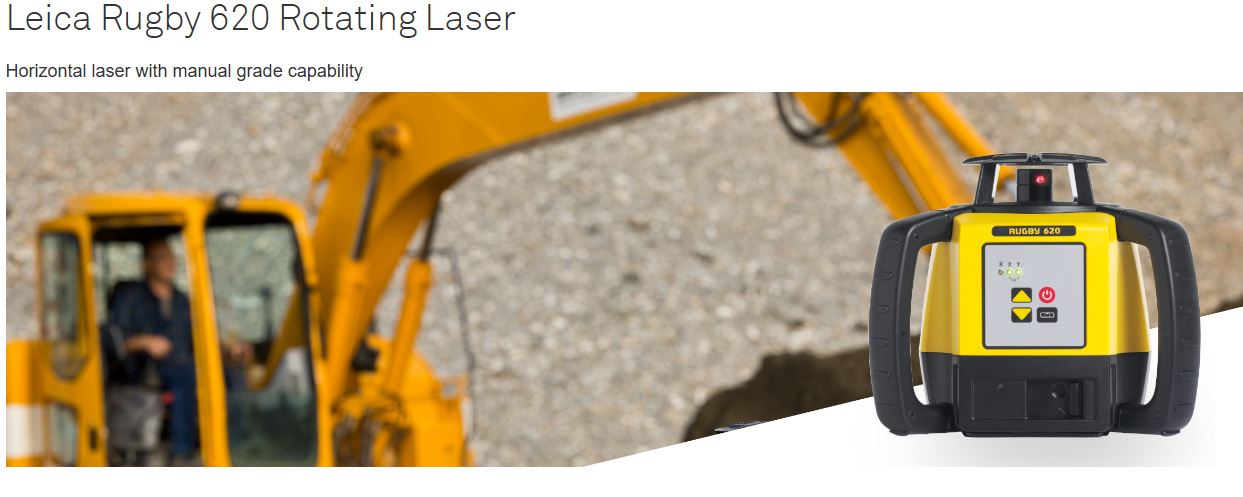

The Rugby 620 is our #1 Recommended Laser for outdoor constriction jobs!
Brochure for Leica Rugby 620

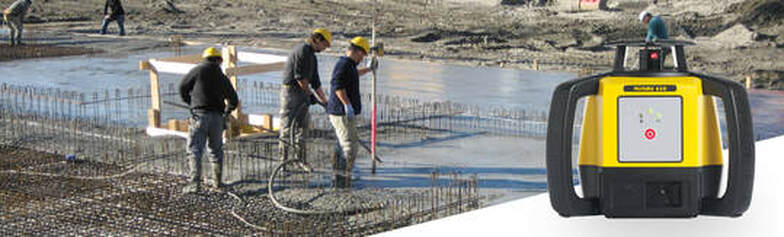

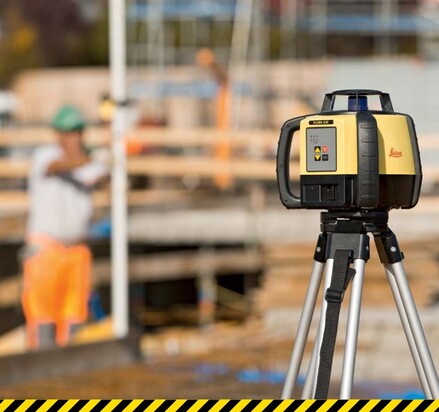

Leica Rugy 610 Laser Level alkaline or rechargeable model
We highly recommend The Leica Rugby line of Laser Levels - Quality units and built tough! with a 5 Year Warranty
We are very impressed with the quality of this laser- it's heavy duty rugged, silent rotation. It's a very accurate and great choice for a laser that will last on busy jobsite. HIGHLY RECOMMENDED!

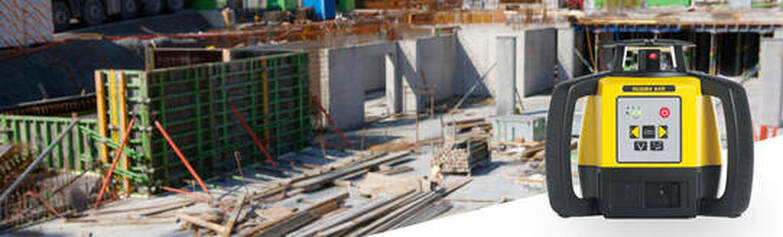

Leica Rugby 640 Horizontal/Vertical Laser Level
Vertical/Horizonal laser with receiver, rechargeable battery and charger
Includes universal wall mount Interior/Exterior

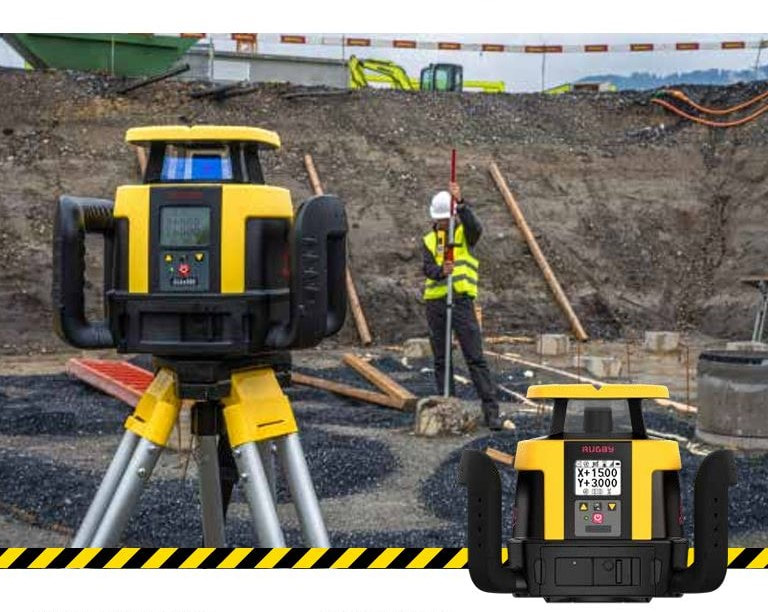

Leica Rugby Slope grade lasers
CLAx550 Semi-Automatic Dual Slope
CLAx550 Semi-Automatic Dual slope w/ Grade Match
CLAx700 Fully-Automatic Dual Slope
CLAx700 Fully-Automatic Dual Slope w/ Grade Match
See spec sheet: HERE

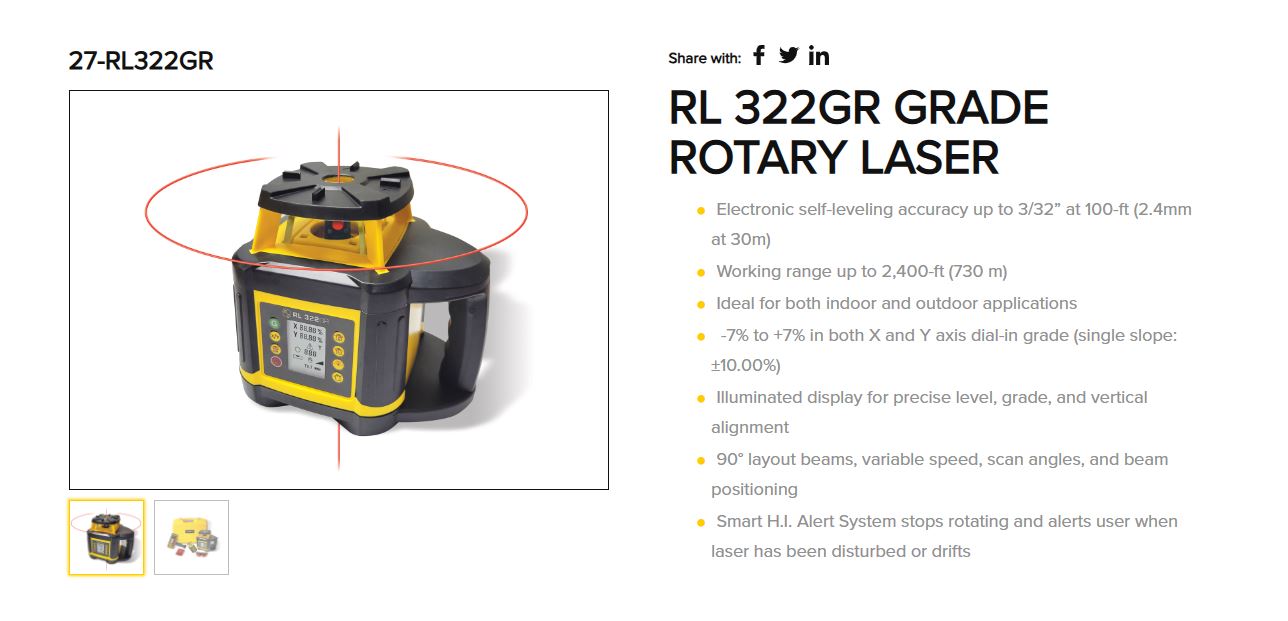

Site Pro RL 322GR Dual Grade Laser Price - Only $1,795.00
Site Pro SK28XP 28-POWER PRO AUTOMATIC LEVEL
The SitePro SK-Series automatic level features superior optics and excellent magnification with large aperture that allows more light for a sharper image. Finely tuned magnetically dampened compensator quickly levels and stabilizes the line of sight despite fine vibrations, providing high precision leveling results. The unique compensator design made of super-high-tensile metal provides maximum durability and accuracy in all environments. Horizontal and vertical cross hairs with 1:100 stadia lines - measures level, alignment & estimates distance. Fine motion horizontal tangent knobs on left and right sides allow friction braked rotation, endless horizontal drive and precise pointing and angle measurement. Solid leveling metal base with three precision leveling screws provides stability and accuracy in all weather and job site conditions. 360° Graduated horizontal circle in 1-degree increments for layout applications. Circular level can be easily viewed with 90-degree mirror for accurate and quick set-up without changing your eye height.
- 28-power magnification
- ±1/16" accuracy at 150-ft
- (±1.5mm @ 45m)
- 300' (90m) working range with 1° 30’ field of view
- 360° Graduated horizontal circle in 1-degree increments for layout applications
- 10’/2mm circular bubble vial with 90-degree mirror for accurate and quick set-up
more info HERE

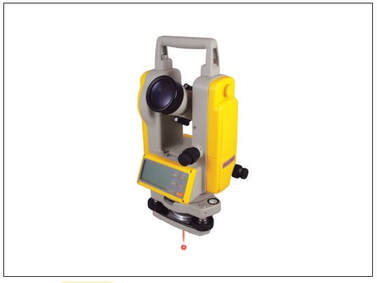

David White Site Pro DT8-05LP 5-Sec. Digital Theodolite, with Laser Plummet
DT8-05LP 5-second digital theodolite with laser plummet for centering of point. Simple, push button functions gives the user precise LCD digital readouts.
- Incremental encoding detection system with dual digital displays
- Automatic power shut-off
- Coaxial tangent and clamp screws provide ease of use in sighting and alignment
- Built-in battery pack can be attached and detached by a single action
- Water resistant, sealed construction
We Recommend Leica Total Stations!

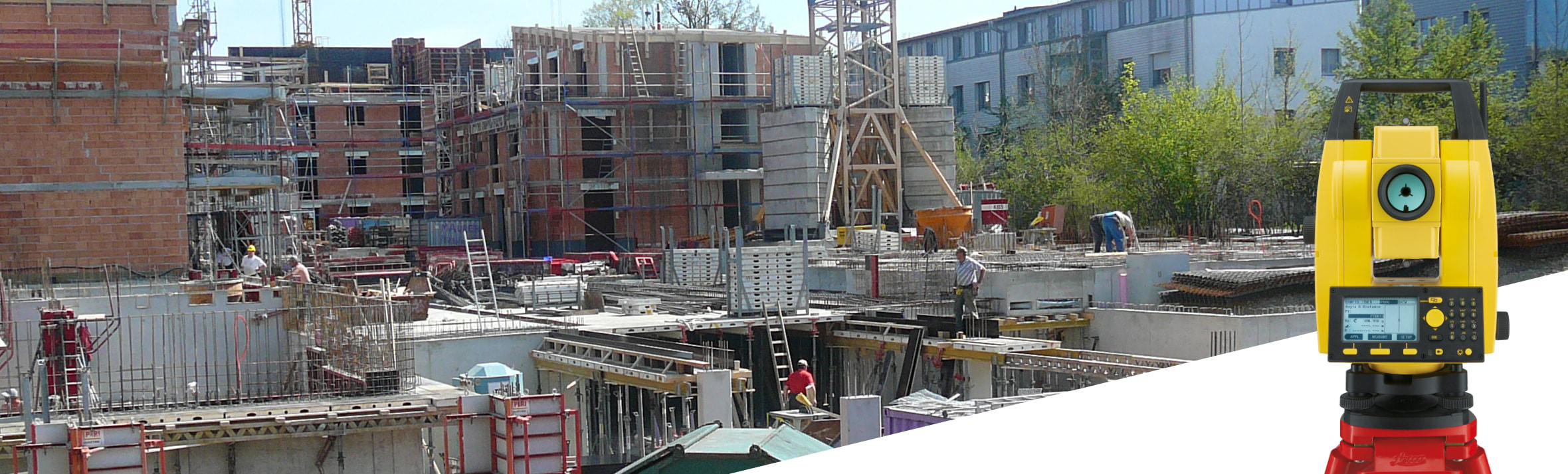

Details and information on Leica Builder models
Details and information on Leica iCON iCB70 Manual Construction Total Station
Details and information on Leica iCON builder 60 – Manual Total Station
ZIPLEVEL PRO-2000 Precision Altimeter Laserless Digital Level and Elevation Measurement System
Ideal for landscape construction! Amazing Quick and immediate readouts on elevation! This device will save you lots of time- forget using a laser level. Use this!
Watch the YOUTUBE VIDEO!
Another YOUTUBE VIDEO!
Displays elevation difference on LCD display
- Set up in seconds
- 1/8 inch accuracy in 200ft range
-
Common Product Uses
-
Tens of thousands of Contractors, Engineers, Architects, Geologists and numerous other professionals world wide use ZIPLEVEL everyday.
-
For nearly a decade ZIPLEVEL technology has been finding its way into almost every application imaginable in virtually every major country of the world. Within just hours after the tradgedy of September 11, ZIPLEVEL was at the Pentagon helping to assess structural damage. In Lousiana, ZIPLEVEL is being used by geologists to measure and arrest settling of 300' diameter oil tanks. In the Bahamas biologists are using ZIPLEVEL to study shell fish beds. In Pennsylvania, ZIPLEVEL has helped to layout miles of state highway through finish grading. For years, the Pittsburg Pirates have used ZIPLEVEL to maintain award winning ball parks.
-
Here are some of the most common uses: Site Planning, Inspections, Grading and Excavation, Concrete Forms,Pools and Basements, Patios and Decks,Masonry, Septic Systems,Pipe slopes,Sewer Connections,Landscaping,Railings,Roofs
-
Siding,Dropped Ceilings,Foundation Inspections,Home Inspections,Structural Analysis and Repair,Roads and Asphalt,Geotechnical Analysis,Forestry, Campgrounds, Trails,Ball Parks,Theme Parks,Mining, Farming
Visit the ZIPLEVEL website for more details
iDig Excavator System!
Watch this video on iDig system
Contact us for info and pricing!
Now available - Leica Rugby Laser levels, and pipelaser !
Interested in other machine control systems for your excavator, dozer? Contact us for a representative for more information
see Leica geosystems machine control
Site Pro KS100H Self-Leveling Rotary Laser - Our Lowest cost economy Laser Level
Price only $795.00
Dave White’s SitePro introduces an electronic self-leveling rotary lasers big in performance, simple leveling with precision and durability – the New SLR300H Self-Leveling Rotary Laser.
The SLR300H is fully electronic with accuracy up to 1/8-in at 100-ft (3mm at 30m) and working range up to 1000-ft (300m) diameter. Self leveling range is up to +/- 5° with built-in sensor to indicate out-of-level condition and ensure accuracy.
For simple grade jobs, the SLR300H is equipped with dual manual slope capability up to +/- 8.77% in both axis’. Smart H.I. alert system alerts user when laser has been moved or disturbed from its self leveling position. Enclosed rotor housing keeps laser beacon safe from all elements (IP54) and provides protection for tough jobsite conditions. The SLR300H is ideal for exterior applications with single 650nm laser beam.
The SLR300H is powered with four ‘C’ alkaline batteries. Kit includes the RD300 laser detector with clamp, alkaline battery tray, batteries, and carrying case.

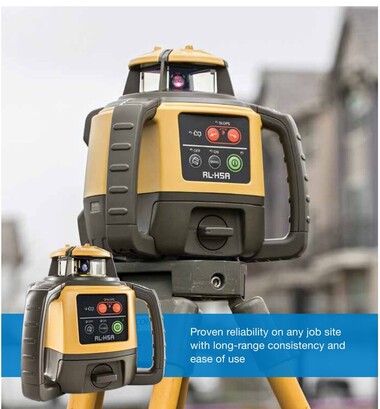

Topcon RL-H5A Horizontal Laser Level
(replaces the RL-H4C ) - our gold standard in alkaline or rechargeable models 5 Year Topcon Warranty!
With great distance and high-accuracy — The RL-H5A is a next generation self-leveling construction laser.
- Long-range operation (800 m)
- Smart long-range receiver
- Simple, intuitive manual slope capability
- ±10 Arc second horizontal accuracy
- Extra-long battery life (100 hours)
- Tough IP66 weatherproof rating
Topcon Rl-SV1s Single Slope Grade Laser Level - New
ALSO NEW ! RL-SV2S Dual Slope Laser
SINGLE SLOPE APPLICATIONS The RL-SV1S is designed for single slope applications.
The RL-SV1S is a cost effective solution covering single slope job site needs!Key Components • RL-HV1S laser • Laser manager app •
Works with LS-100 and LS-80 series laser receiver
• Bluetooth
Sensor holder
Batteries and charger • Carry case
Five-year guarantee The RL-HV1S laser comes with a five-year guarantee. Topcon backs up this reliable, accurate laser with the best factory warranty in the industry.
BROCHURE Single Slope
BROCHURE Dual Slope

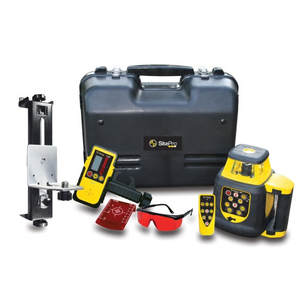

Site Pro SLR200HV
HORIZONTAL & VERTICAL ROTARY LASER - Great for indoor and outdoor work!
The SLR200HV features horizontal and vertical electronic self-leveling laser for precise leveling applications, ideal for both indoor and outdoor use. Vertical laydown positioning provides vertical alignment capabilities and squaring to ensure that walls or partitions are precisely aligned.
- Manual Mode allows laser to tilted for simple slope applications
- Smart H.I. Alert System alerts user when laser has been disturbed
- Variable rotation speeds for a wide variety of jobsite visibility settings: 0, 60, 300 and 600RPM
- Scan Angles: 10°, 45°, 90°, 180°; for maximum visibility
- Visible 90-degree layout beams (both up and down plumb) for alignment and squaring to ensure that walls or partitions are precisely aligned
- Clock-wise and counter-clock-wise beam positioning
- Enclosed Rotor Housing keeps laser safe from tough jobsite conditions
- Windy Mode Feature allows laser to level at jobsites with high winds or vibrations
Package Content: Rotary Laser, RC28 Remote, Glasses, Magnetic Target, Multi-Mount, RD200 Laser Detector w/Clamp, NiMH Rechargeable Battery Pack, Carrying Case, User Manual
SPECIFICATIONS
- Horizontal Accuracy @ 100-ft (30m): ±1/8-in (3mm)
- Range with Detector (Diameter): 1600-ft (500m)
- Interior Range (Diameter): 320-ft (98m)
- Leveling Type (Degrees): Electronic (±5º)
- Beam Rating: Class 3R, 635nm
- Vertical Self-Leveling @ 100-ft (30m): 1/8-in (3mm)
- Slope/Grade Capability: Dual (±10.00%)
- Battery Type: 4-C Cell, NiMh Rechargeable
- Water/Dust Protection: IP55
New - Now available once again the transit for pipelaying and pipelaser alignment
The David White LTU ( Line Transfer Unit ) with laser plummet
davidwhite-_lt8300ltulp_brochure.pdf
File Size:
4968 kb
File Type:
Almost indispensable in obtaining line and invert in pipe laying operations, our Line Transfer Unit can be used with pipe aligning lasers or as transit-levels. The LTU allows fast setup and double-checking of laser's grade, and can also be used for leveling and grading work.
Topcon RL-SV2S Dual Slope Grade Laser
Higher Performance with a Lower Price Tag
The RL-SV2S is Topcon’s newest construction laser! Following in a long line of superior quality laser transmitters, the RL-SV2S is a dual slope, long range, self-leveling instrument built to outperform all of its competitors.
This laser is a great tool for any general construction or engineering project and designed for use for flat work, single or dual slope applications. Slopes up to +/_ 15 degrees can be used in either the X or Y axis. With a 2,400 foot (diameter) operating range, the RL-SV2S has the power to cover even the biggest job sites.
That’s not all! Turn the RL-SV2S on its side and use it for layout and alignment. Lay it down on the built-on mount or attach it to a tripod and the laser will electronically self-level for fast and accurate vertical applications. This multi-use laser does just about everything.
-
Long Range Operation (800m)
-
Horizontal, Multi-Slope & Vertical Applications
-
Extra Long Battery Life (120 hours)
-
Tough IP66 Construction Rating
-
Bluetooth for Remote Control
