Prism Poles & Accessories

67-4708TMA Prism Pole


  • Adjustable tip with 5/8-11 adapter for prism mounting
  • Easily visible precise level vial
  • Hardened steel point and standard red and white paint
  • Anodized dual-graduation marks


                          Twist Lock Mechanism with
                                built-in bubble via
Length -  8’ (2.5m)
Material - Aluminum
Weight  - 2.1 lbs (0.95kg)
Sections  -2

Prism Pole Bipod


  • Thumb Release Prism Pole Bipod
  • The durable, all-metal construction will withstand years of use and abuse.
  • Powder painted aluminum legs and replaceable hardened steel shoes.
  • Fits Poles 7/8" to 1-1/2" dia. (22mm-38mm dia.)
  • One thumb is all that's needed when using this new bipod with a prism or antenna pole.

 Peanut Pack Mini Prism


  • 0/30mm dual offset, Prism diameter: 254mm (1"), Precision prism ground up to 2 arc seconds
  • Dual-sided tilting target Black anodized aluminum can
  • New o-ring gasket, improved sealing and durability All holders have an on board bubble level
  • Stainless steel hardware Holders molded from durable and lightweight polycarbonate

Optima Metal Prism


All Metal 0/-30mm Single Tilt Prism Assembly with Target
Premium Series 0/-30mm Constant Prism System. Fully compatible with leading manufacturers such as Trimble, Sokkia, Topcon, Pentax, Nikon, etc.
Hermetically sealed 2-1/2" (62.5mm) precise prism

  • Tension adjusting brass knob
  • Brass 5/8" x 11 bayonet adapter

Warranty:
One year manufacturer's limited warranty

Tribrach with Optical Plummet


  • Value oriented price and quality combination
  • Circular leveling sensitivity: 10'/2mm
  • Optical plummet focusing range: 1.5 to 50 ft. (0.5 to 15m)
  • Weight: 1.85 lbs. (.84kg)

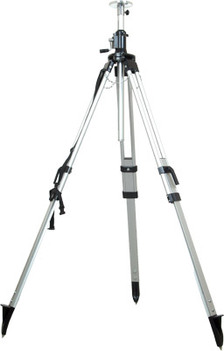

Aluminum Elevator Tripod


48" closed
88" open

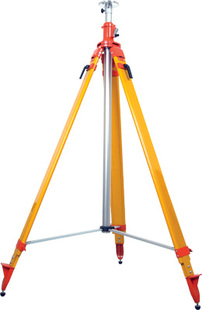

Extra Tall Heavy Duty Elevator Tripod


This tripod has a fully-extended height of 12.40 ft (3.80 m).
72" closed, 148" open
The legs and dowels are constructed of fiberglass, resulting in durability, strength and resistance to weathering.

It features an adjustable center column that gives the tripod 5.97-ft (1.82-m) of lift.

A detachable round head plate with a 5/8 x 11 stud gives your GPS Antenna a sturdy platform.
The tripod's collapsed height is 5.97 ft (1.82 m).
Lockable leg stabilizer struts, dual clamps, twist locks, quick clamps, along with dual metal and rubber leg points create greater stability.
