Topcon RL-H5A Horizontal Laser Level ( replaces the RL-H4C )
​ - our gold standard available in alkaline or rechargeable models
​5 Year Topcon Warranty!


With great distance and high-accuracy — The RL-H5A is a next generation self-leveling construction laser.

  • Long-range operation (800 m)
  • Smart long-range receiver
  • Simple, intuitive manual slope capability
  • ±10 Arc second horizontal accuracy
  • Extra-long battery life (100 hours)
  • Tough IP66 weatherproof rating

SEE BROCHURE!

​Topcon Rl-SV1s Single Slope Grade Laser Level - New


​
SINGLE SLOPE APPLICATIONS The RL-SV1S is designed for single slope applications. This cost-effective, easy-to-use laser has a solid set of features.
The RL-SV1S is a cost effective solution covering single slope job site needs!

  • Long-range operation - 800m (diameter)
  • Single slope laser
  • Tough IP66 construction rating
  • Extra-long battery life (up to 120 hours)
  • Bluetooth  for  remote display
  • ​LS-100D Receiver
  • BROCHURE

We recommend the Topcon RL-SV2S Dual Grade Slope laser


Higher Performance with a Lower Price Tag
The RL-SV2S is Topcon’s newest construction laser! Following in a long line of superior quality laser transmitters, the RL-SV2S is a dual slope, long range, self-leveling instrument built to outperform all of its competitors.

This laser is a great tool for any general construction or engineering project and designed for use for flat work, single or dual slope applications. Slopes up to +/_ 15 degrees can be used in either the X or Y axis. With a 2,400 foot (diameter) operating range, the RL-SV2S has the power to cover even the biggest job sites.

That’s not all! Turn the RL-SV2S on its side and use it for layout and alignment. Lay it down on the built-on mount or attach it to a tripod and the laser will electronically self-level for fast and accurate vertical applications. This multi-use laser does just about everything.

But wait, there’s more! This versatile construction tool is loaded with all the features contractors love including long battery life (100 hrs/alkaline and 60hrs/ rechargeable Ni/MH), height of instrument alert, a dual sided detector, and electronic shutters. All of these features (and others) can be accessed on the front control panel or on a remote control devise which comes standard.

Features:

  • Long Range Operation (800m)
  • Horizontal, Multi-Slope & Vertical Applications
  • Extra Long Battery Life (120 hours)
  • Tough IP66 Construction Rating
  • Bluetooth for Remote Control
  • LS-100D Reviever

Multi-Use Applications:
Designed for multiple types of tasks, the RL-SV2S can be used for horizontal, sloping and vertical laser applications. Slopes up to +/- 15 degrees can be used in either the X or Y axis. Turn it on its side and use it for layout and alignment jobs.
High Powered:
With an operating range of over 800m (diameter) the RL-SV2S has the power to cover even the biggest projects.

Long Battery Life:
Contractors who want a laser with a long battery life will love the RL-SV2S. Available with Alkaline Dry Battery Pack or with Rechargeable Battery Pack. With an operating time of 120 hours on alkaline batteries or 65 hours with the rechargeable Ni-MH battery pack this laser will still be working long after others have quit.

All Weather Dependability:
With the IP66 rating, the RL-SV2S is “jobsite tough” and can withstand dust, a sudden shower and even torrential rainfall.
See Product Brochure

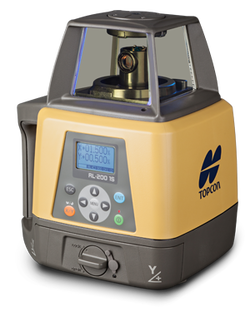

Topcon RL-200 1S / 2S High Accuracy Slope Lasers


High Accuracy, High Value Slope Lasers

The RL-200 Series is available in single slope (RL-200 1S) and dual slope (RL-200 2S) models. No matter which one you choose, the RL-200 will keep you working accurately day after day by providing the highest grade repeatability available (7 arc seconds). Both models provide exceptional slope range, -5% to +25% for the 1S, and +/-10% in the X axis and an industry leading -5% to +25% in the Y axis for the 2S. Other features include a large, bright, high-contrast display, large, clearly labeled operation interface, and standard with the RL-200 2S, a full feature remote to control all RL-200 2S functions up to 1,000' (200m) away. The RL-200 also come with Topcon's exclusive 5 Year Guarantee, the best factory warranty in the industry (click here for details).

Topcon's RL-200 Series features include:

  • 7 Arc Second Accuracy

  • Wide Grade Range (up to 25% slope) without Slope Blocks

  • Extra-Long Battery Life (100 hours)

  • Long Range - up to 3,600' (1,100m)

  • Graphical Display

  • Full Function Remote (RL-200 2S only)

  • Accuracy Horizontal ±7 arc seconds Repeatability 7 arc seconds

  •  Working Area 3,600 ft. (1100m)

  •  Rotation Speed 300/600/900 rpm

  •  Dust/Water Protection IP66

  •  Operating Time Alkaline: 100 hours
    Ni-MH: 90 hours Grade Range
    (single/dual) RL-200 2S: ±10 / -5 to +25
    RL-200 1S: -5 to +25 / N/A Size (H x W x L) 253 x 218 x 174mm

  • See Product Brochure
